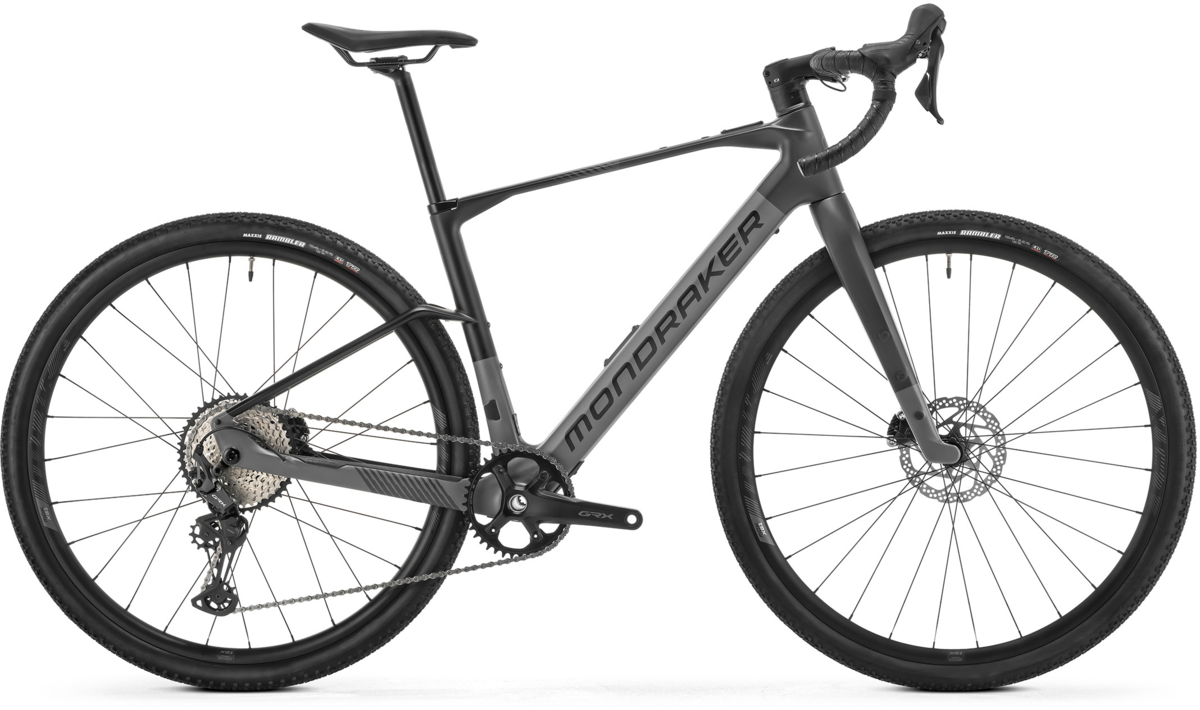

Mondraker Dusty

Mondraker Dusty
  • Color: Gray/Obsidian
$6,499.99
$7,499.99
Color: Gray/Obsidian
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

Entry level e-gravel bike.

Sizes:
Frame sizeSmallMediumLargeX-Large
Seattube length 440 mm 460 mm 500 mm 530 mm
Toptube length 550 mm 570 mm 595 mm 620 mm
Bottom bracket drop -70 mm -70 mm -70 mm -70 mm
Bottom bracket height 286 mm 286 mm 286 mm 286 mm
Chainstay length 425 mm 425 mm 425 mm 425 mm
Seat tube angle 74º 74º 74º 74º
Effective seattube angle 74º 74º 74º 74º
Headtube angle 70º 70º 70º 70º
Fork Offset 45 mm 45 mm 45 mm 45 mm
Wheelbase 1034 mm 1056 mm 1082 mm 1110 mm
Headtube length 125 mm 150 mm 175 mm 210 mm
Reach 393 mm 405 mm 424 mm 440 mm
Stack 548 mm 576 mm 595 mm 628 mm
Stem Length 60 mm 60 mm 80 mm 90 mm
Fork Height 420 mm 420 mm 420 mm 420 mm

Specs

Frame The foundation of the DUNE is a Stealth Air Carbon frame weighing in at 2650 grams, combined with the power and light weight of Bosch’s latest offering, the Performance SX. The frame showcases our Updated Zero Suspension and offers 165mm of rear-wheel travel and Forward Geometry specifically tuned for this long-travel hard-hitting light ebike.
Fork Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Rims MDK-XG1, 25mm internal width, tubeless ready, 28 spokes
Hubs Front: Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts
Rear: Mahle X20 Drive Unit, MS freehub
Spokes CN round stainless steel
Tires Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Bottom Bracket Mahle DUB pressfit, sealed bearings, w/ torque sensor
Crankset Shimano GRX RX-610, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 49,7
Chainrings Shimano 40T, direct mount, steel
Shifters Shimano GRX RX-610 dual control, alloy lever
Rear Derailleur Shimano GRX RX-822-GS, 12s
Cassette/Freewheel Shimano SLX M7100, hiperglide+,10-45, 12s
Chain Shimano SLX M7100, Quick link
Brakes Shimano GRX RX-610, RX-400 caliper, RT56 IS 6 bolt rotor, resin pad
Brake Levers Shimano GRX RX-610, contact point adjustment, tooled reach adjust, aluminium lever.
Handlebars OnOff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm
Tape/Grips OnOff HEX Bartape
Stem OnOff S3 GR 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm
Headset Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Seatpost Onoff S3 0-R, diameter 31.6mm, length 400mm
Saddle FIZIK Terra Argo X7 150mm
Motor Mahle X20 Drive Unit
Battery Mahle X20 IX350Wh
Controller/Display Pulsar One Wireless

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gray/Obsidian / Small / 29-inch 08435392896252 MO-010-25US391 210000033112
Gray/Obsidian / Medium / 29-inch 08435392896269 MO-010-25US392 210000033099
Gray/Obsidian / Large / 29-inch 08435392896276 MO-010-25US393 210000033100
Gray/Obsidian / X-Large / 29-inch 08435392896283 MO-010-25US394
