Details

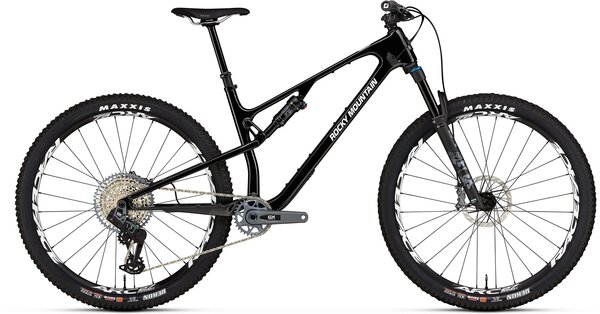

Designed to strike the perfect balance of lightweight cross-country efficiency and technical precision, the Element is the best of all worlds.
The lightest full-suspension carbon bike we've ever made
350g lighter than the previous generation, even more capable.
Not your average pivot design.
A new addition to the Element is the Smoothlink SL flex stay. By eliminating the traditional pivot, we’re not only able to shave weight but also increase stiffness in the rear triangle. Lighter and more refined, you can expect the same supreme ride quality of our traditional Smoothlink design that puts the Element ahead of its competitors.
Engineered for the Edge
Progressive geometry keeps you ahead of the pack with long, low, and slack angles that confidently tackle any surprises along the way.
Optimized for Power, Built to Thrill
We fine-tuned the frame design to save over 350g in weight, making the Element the lightest full-suspension bike we've ever produced. At the same time, we increased frame stiffness in key areas for a responsive, snappy, and quick-accelerating ride feel.
Adventure-Ready by Design
Customize what you carry with multiple frame mounts for bottles and accessories. Plus, upgraded dual-row, high-capacity bearings ensure reliability and longevity. From long-distance racing to deep backcountry missions, the Element has you covered.
Wheel size
RIDE-9/4 POSITION
Specs
Frame | SMOOTHWALL™ Carbon | SMOOTHLINK SL™ Suspension | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | RIDE-4™ Adjustable Geometry | 120mm Travel | SMOOTHWALL™ Carbon Rear Triangle |
---|---|
Fork | Fox 34 Float Performance Elite 29 | XS = 120mm | SM - XL = 130mm | GRIP X Damper | 44mm Offset |
Headset | FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
Rear Shock | Fox Float Performance Elite | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 190x45mm |
Rims/Wheels | Race Face ARC 27 | 28H | Tubeless Set Up | Sealant Incl |
Hubs | R: DT Swiss 370 Boost 148mm | 18T Star-Ratchet, F: Novatec D791SB Sealed Boost 15mm |
Tires | Maxxis Rekon WT 3C MaxxTerra EXO Tubeless Ready 2.4 | Tubeless Set Up | Sealant Incl |
Crankset | Sram GX Transmission | 32T | DUB Spindle | Crankarm Length: XS -SM = 165mm | MD - XL = 170mm |
Bottom Bracket | Sram BB92 DUB Wide |
Chain | SRAM GX Eagle T-Type |
Rear Derailleur | SRAM GX Eagle AXS T-Type |
Rear Cogs | Sram GX Eagle Transmission 10-52T |
Shifters | Sram AXS Pod Wireless Controller |
Handlebars | Race Face Turbine | XS = 760mm | SM - XL = 780mm Width | 20mm Rise | 8° Backsweep | 5° Upsweep | 35mm Clamp |
Tape/Grips | ODI Elite Pro Lock On |
Stem | Rocky Mountain 35 XC | 0° Rise | All Sizes = 50mm |
Brakes | Sram Level Bronze Stealth 4 Piston | Resin Pads |
Saddle | WTB Silverado Race 142 | Cromoly Rails |
Seat Post | Fox Transfer Performance Elite Dropper 30.9mm | XS - SM = 120mm | MD = 150mm | LG = 180mm | XL = 210mm |
Weight | 26.92lbs |
* Subject to change without notice.
