Rocky Mountain Element Carbon 90 - 2022

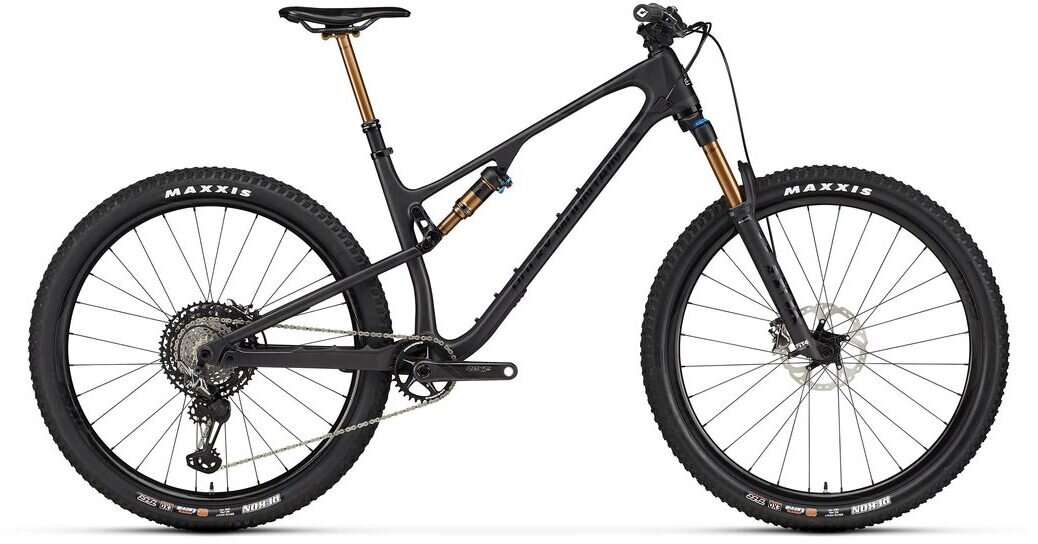

Rocky Mountain Element Carbon 90
This item is currently not available.

Details

Purpose-built to hit the precise sweet spot between lightweight cross country climbing prowess and technical precision, the Element is the best of both worlds and more. New-levels of climbing efficiency guarantees that oh-so-sweet feeling of riding someone off your wheel. Added levels of stability on fast descents and a pseudo-aggressive seat tube angle provides surprising levels of confidence on tight single track and hairy descents. Light. Stiff. Fast. Smooth. Precise. You're now in your Element—always.

- All new frame
- Capable short travel trail bike & singletrack race bike
- Full Hi Mod carbon frame, shared across all models
- Ride-4 Geometry adjustment tailors bike to suit the rider & terrain
- 2 Water bottles on S-XL (1 lg bottle on XS)
- Size XS gets 27.5 wheels and dedicated light rider kinematics

Wheel size:
- Size X-Small: 27.5-inch
- Sizes Small – X-Large: 29-inch

Geometry

Geometry Chart:
SizeX-Small (27.5)Small (29)Medium (29)Large (29)
Ride-4 Position Pos. 1 Slack Pos. 1 Slack Pos. 1 Slack Pos. 1 Slack
Top Tube Horizontal (mm) 542 577 605 632
Head Tube Angle (deg) 64.7 65 65 65
Head Tube Length (mm) 90 105 115 125
Seat Tube Angle (deg) 75.7 76 76 76
Seat Tube Length (mm) 355 380 420 445
Rear Centre (mm) 426 436 436 436
Bottom Bracket Drop (mm) 28 47 47 47
Reach (mm) 397 425 450 475
Stack (mm) 561 606 615 624
Standover Height (mm) 769 810 808 806
Wheelbase (mm) 1127 1173 1202 1231
Sizes:
X-Small 27.5”: 142.5 - 157.5 cm / 4’8” - 5’2”
Small 29”: 157.5 - 170 cm / 5’2” - 5’7”
Medium 29”: 167.5 - 177.5 cm / 5’6” - 5’10”
Large 29”: 175 - 188 cm / 5’9” - 6’2”
X-Large 29”: 185.5 - 198 cm / 6’1” - 6’6”

Specs

Frame SMOOTHWALL Carbon. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. RIDE-4 Adjustable Geometry + Suspension Rate. 120mm Travel. SMOOTHWALL Carbon Rear Triangle
Fork Fox 34 Float Factory 130mm | 44mm Offset
Rear Shock Fox Float DPS Factory | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 190x45mm | Size-Specific tune in FAQ
Rims Rocky Mountain 26XC Carbon | Tubeless Ready - Tape | Valves Incl
Hubs Front Hub Rocky Mountain Sealed Boost 15mm Rear Hub DT Swiss 350 Boost 148mm | 36T Star-Ratchet
Spokes DT Swiss Revolution 2.0/1.5/2.0
Tires F: Maxxis Rekon WT 3C MaxxTerra EXO Tubeless Ready 2.4 | R: Maxxis Rekon WT 3C MaxxTerra EXO Tubeless Ready 2.4 |
Bottom Bracket Race Face BB92 30mm
Crankset Shimano XTR 2 Piston | Metal Pads | F: Shimano RT86 180mm | R: Shimano RT86 180mm
Shifters Shimano XTR
Rear Derailleur Shimano XTR
Chain Shimano XTR 12s
Handlebars Race Face Next R | 780mm Width | 20mm Rise | 8° Backsweep | 4° Upsweep | 35mm Clamp
Tape/Grips ODI Elite Pro Lock On
Stem Rocky Mountain 35 CNC | 0° Rise | All Sizes = 50m
Headset FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Seatpost Fox Transfer Factory Series 30.9mm | XS - SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm
Saddle WTB Silverado Carbon 142 | Carbon Rails
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
Carbon/Black / X-Small / 27.5-inch 770416410556 B0205XS71
Carbon/Black / Small / 29-inch 770416410396 B0205SM91
Carbon/Black / Medium / 29-inch 770416410433 B0205MD91
Carbon/Black / Large / 29-inch 770416410471 B0205LG91
Carbon/Black / X-Large / 29-inch 770416410518 B0205XL91
