Details

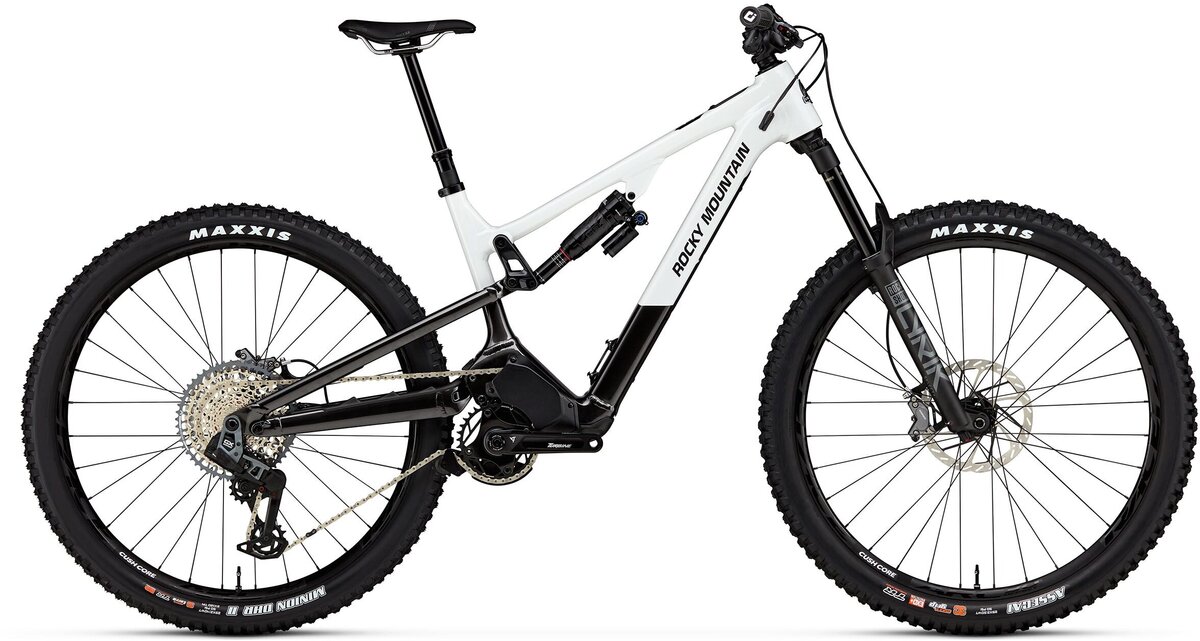

The Instinct Powerplay SL Alloy is a lightweight marvel that packs a punch. With the new Dyname S4 Lite drive system, this bike rides like a trail bike while giving you the power to explore further. Thanks to its adjustable geometry, refined suspension kinematics, and MX compatibility, the Alloy Instinct Powerplay SL offers bold levels of playfulness and agility, lap after lap... after lap.
Wheel size
RIDE-9/4 POSITION
Specs
Frame | FORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry | 150mm Travel | FORM™ Alloy Rear Triangle |
---|---|
Fork | RockShox Lyrik Select+ 160mm | Charger 3.1 RC2 Damper | 27.5 = 37mm Offset | 29 = 42mm Offset |
Headset | FSA ZS56/66 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
Rear Shock | SM-XL: Rock Shox Super Deluxe Select+ | 230x60mm | XS: Rock Shox Deluxe Ultimate | 210x55mm |
Rims/Wheels | Race Face ARC 30 | 32H | Cushcore Trail Tire Inserts | Lightweight | Tire & Rim Protection |
Hubs | Front: Novatec D791SB Sealed Boost 15mm, Rear: DT Swiss 370 Boost 148mm | 18T Star-Ratchet |
Tires | Maxxis Assegai 2.5 WT 3C MaxxGrip EXO+ Tubeless Ready | Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready | Cushcore Trail Tire Inserts | Lightweight | Tire & Rim Protection |
Crankset | Race Face Turbine Cinch | 34T T-Type Ring | 30mm Spindle | XS - XL = 165mm |
Bottom Bracket | Race Face BB92 30mm |
Chain | Sram GX Eagle Transmission |
Rear Derailleur | Sram GX Eagle Transmission Wireless |
Rear Cogs | Sram GX Eagle Transmission 10-52T |
Shifters | Sram AXS Pod Wireless Controller |
Handlebars | Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp |
Tape/Grips | ODI Elite Pro Lock On |
Stem | Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm |
Brakes | Sram Code Bronze Stealth 4 Piston | Metal Pads |
Saddle | WTB Solano Fusion Form 142 | Cromoly Rails |
Seat Post | OneUp V3 Dropper 30.9mm | XS - SM = 120mm | MD = 150mm | LG = 180mm | XL = 210mm |
Motor | Dyname S4 Lite Mountain Bike Drive | 250w Nominal Power | 550w Max Power | 65Nm |
Battery | 480 Wh Removable Integrated Li-Ion |
Weight | 46.22lbs |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Grey/White / X-Small (27.5) | 770416003826 | B0413XS2 | |
Grey/White / Small (29) | 770416003789 | B0413SM2 | |
Grey/White / Medium (29) | 770416003765 | B0413MD2 | 210000031275 |
Grey/White / Large (29) | 770416003741 | B0413LG2 | 210000031298 |
Grey/White / X-Large (29) | 770416003802 | B0413XL2 | 210000031299 |
