Details

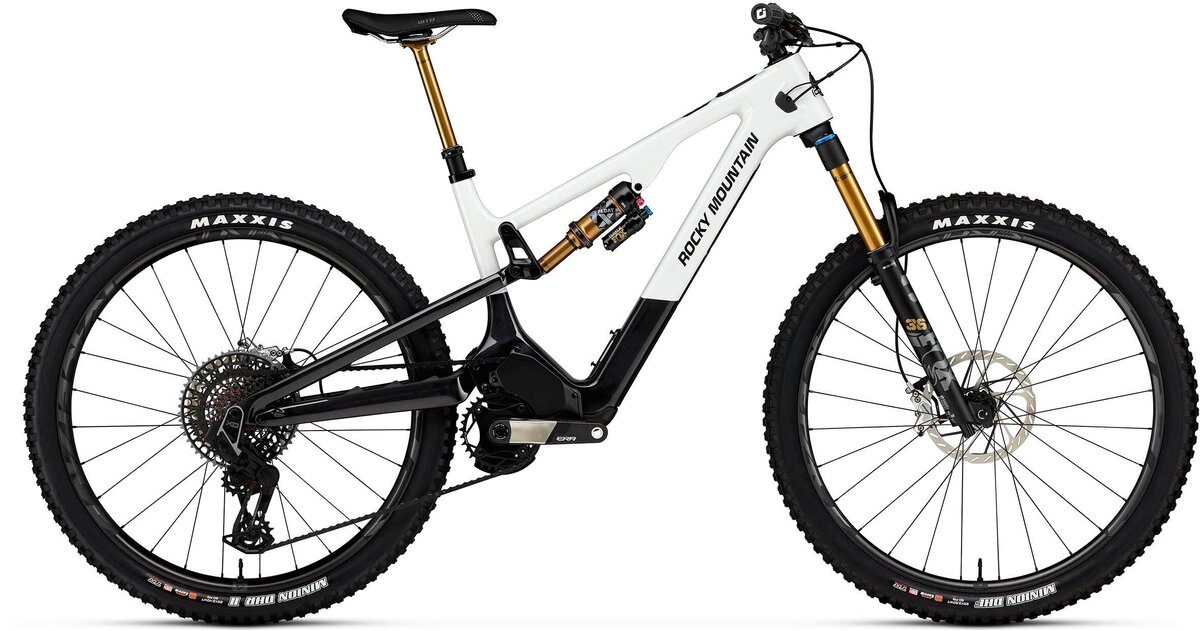

The Instinct Powerplay SL Carbon packs a punch in a lightweight package. Powered by the all-new Dyname S4 Lite drive system, this bike rides like a trail bike with the power to explore further than ever before. With adjustable geometry, refined suspension kinematics, and MX compatibility, the Carbon Instinct Powerplay SL delivers unreal levels of playfulness and agility, lap after lap… after lap.
Wheel size
RIDE-9/4 POSITION
Specs
Frame | SMOOTHWALL™ Carbon | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry | 145mm Travel | SMOOTHWALL™ Carbon Rear Triangle |
---|---|
Fork | Fox 36 Float EVOL GRIP X2 Factory Series 150mm | 27.5 = 37mm Offset | 29 = 44mm Offset |
Headset | FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
Rear Shock | SM-XL: Fox Float X Factory Series | 230x57.5mm | XS: Fox Float Factory Series | 210x52.5mm |
Tires | Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready | Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready | Tubeless Set Up | Sealant Incl |
Crankset | Race Face ERA Cinch | 34T T-Type Ring | 30mm Spindle | XS - XL = 165mm |
Bottom Bracket | Race Face BB92 30mm |
Chain | Sram X0 Transmission |
Rear Derailleur | Sram X0 Eagle Transmission Wireless |
Rear Cogs | Sram X0 Eagle Transmission 10-52T |
Shifters | Sram AXS Pod Wireless Controller |
Handlebars | Race Face ERA | XS = 760mm | SM - XL = 780mm Width | 20mm Rise | 8° Backsweep | 5° Upsweep | 35mm Clamp |
Tape/Grips | ODI Elite Pro Lock On |
Stem | Race Face Turbine R | 0° Rise | All Sizes = 40mm |
Brakes | Sram Code Ultimate Stealth 4 Piston | Metal Pads |
Saddle | WTB Volt Fusion Form 142 | Titanium Rails |
Seat Post | Fox Transfer Factory Series 30.9mm | XS = 120mm | SM = 150mm | MD = 180mm | LG - XL = 210mm |
Motor | Dyname S4 Lite Mountain Bike Drive | 250w Nominal Power | 550w Max Power | 65Nm |
Battery | 480 Wh Removable Integrated Li-Ion |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
White/Carbon/Grey / X-Small (27.5) | 770416001020 | B0410XS2 |
White/Carbon/Grey / Small (29) | 770416000986 | B0410SM2 |
White/Carbon/Grey / Medium (29) | 770416000962 | B0410MD2 |
White/Carbon/Grey / Large (29) | 770416000948 | B0410LG2 |
White/Carbon/Grey / X-Large (29) | 770416001006 | B0410XL2 |
