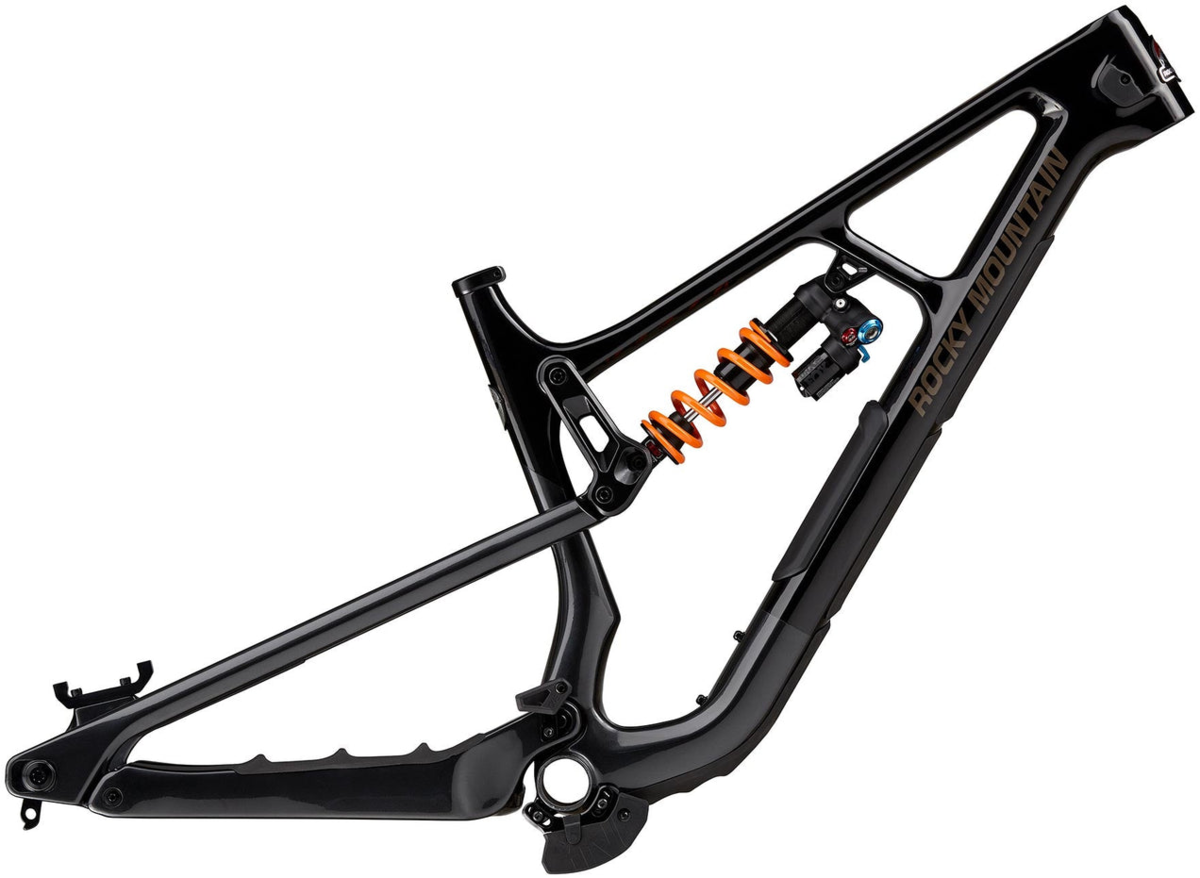

Rocky Mountain Slayer C Frameset - 2024
$3,299.99
Details
Experience balanced trail brutality at its finest. The Slayer is now available in a mixed-wheel setup, is longer and slacker than ever and features a handy PenaltyBox, storage compartment. Nothing can stop you now. Expect villainous levels of confidence when taking on trails or devouring the park.
Wheel Sizing:
Size Small - Medium: 29-inch Front, 27.5-inch Rear
Size Large - X-Large: 29-inch Front and Rear
| SM | MD | |
|---|---|---|
| Top Tube Horizontal (mm) | 568 | 593 |
| Head Tube Angle (deg) | 62.5 | 62.5 |
| Head Tube Length (mm) | 100 | 100 |
| Seat Tube Angle (deg) | 77 | 77 |
| Seat Tube Length (mm) | 380 | 410 |
| Rear Centre (mm) | 440 - 450 | 440 - 450 |
| Bottom Bracket Drop (mm) | 16 | 16 |
| Reach (mm) | 424 | 450 |
| Stack (mm) | 623 | 623 |
| Standover Height (mm) | 820 | 820 |
| Wheelbase (mm) | 1224 | 1249 |
| Frame Size | Measurements |
|---|---|
| Small | 155 - 167.5 cm / 5’1" - 5’6" |
| Medium | 165 - 177.5 cm / 5’6" - 5’10" |
| Large | 175 - 188 cm / 5’9" - 6’2" |
| X-Large | 185.5 - 198 cm / 6’1" - 6’6" |
Specs
| Frame | SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing and Storage Compartment | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 180mm Travel. SMOOTHWALL™ Carbon Rear Triangle |
|---|---|
| Fork | Sold Separately |
| Rear Shock | Fox DHX2 Factory | SLS Spring | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 230x65 mm | Size-Specific tune in FAQ |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Grey/Black / Small / 29-inch front / 27.5-inch rear | 770416529807 | F0055SM2 | |
| Grey/Black / Medium / 29-inch front / 27.5-inch rear | 770416529791 | F0055MD2 | 210000031084 |
| Grey/Black / Large / 29-inch | 770416529784 | F0055LG2 | 210000031083 |
| Grey/Black / X-Large / 29-inch | 770416529814 | F0055XL2 | 210000031082 |
| Red/Blue / Small / 29-inch front / 27.5-inch rear | 770416488906 | F0055SM1 | |
| Red/Blue / Medium / 29-inch front / 27.5-inch rear | 770416488913 | F0055MD1 | |
| Red/Blue / Large / 29-inch | 770416488920 | F0055LG1 | |
| Red/Blue / X-Large / 29-inch | 770416488937 | F0055XL1 |
