Details

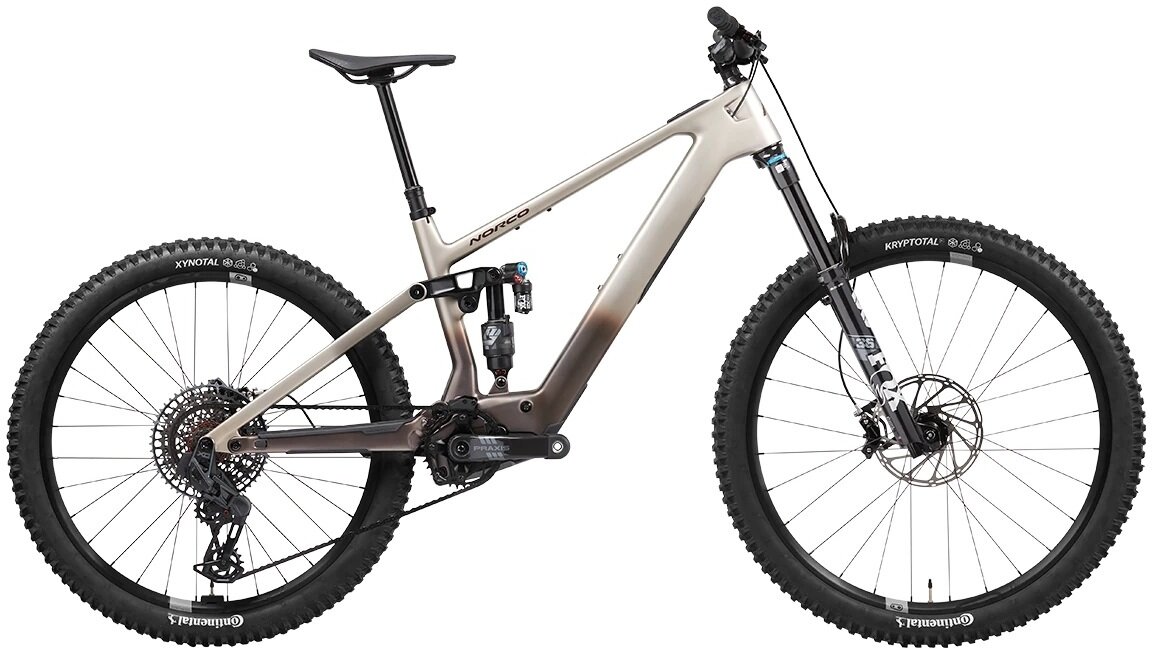

Get more rides in and make the most of every minute of the lightweight Fluid VLT C1 140. Featuring the next-level Bosch Performance Line SX drive system, and 140mm of precision-tuned suspension, integrating mixed wheels across all 5 frame sizes for optimum weight balance & handling.
COMING SPRING 2024.
1 | 2 | 3 | 4 | 5 | ||
---|---|---|---|---|---|---|
Wheel Size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | |
Travel (mm front/mm rear) |
150/140
|
|||||
Reach | 422.5 | 447.5 | 472.5 | 497.5 | 522.5 | |
Stack | 610 | 619 | 628 | 637 | 646 | |
HTA | Head Tube Angle |
64.5
|
||||
OS | Fork Offset |
44
|
||||
ST | Seat Tube Length | 385 | 395 | 415 | 445 | 475 |
STA | Effective Seat Tube Angle | 76.50 | 76.75 | 77.00 | 77.25 | 77.50 |
RC | Rear Centre Length |
432
|
436 | 440 | 444 | |
BB | Bottom Bracket Drop |
28/8
|
||||
BBH | Bottom Bracket Height |
350
|
||||
HTT | Horizontal Top Tube | 569 | 593 | 618 | 642 | 666 |
WB | Wheelbase | 1181 | 1210 | 1243 | 1277 | 1310 |
SOH | Standover | 715 | 701 | 703 | 720 | 743 |
HT | Head Tube Length | 100 | 110 | 120 | 130 | 140 |
Trail |
132
|
|||||
Recommended Seatpost Drop | 125 | 150 | 170 |
200
|
||
Maximum Post Insertion | 240 | 250 | 270 | 300 | 330 | |
Stem Length |
40
|
|||||
Crank Length |
165
|
|||||
Tire Size |
2.35" – 2.6"
|
|||||
Water Bottle Compatible | 1 x 620 mL |
1 x 750 mL
|
Specs
Frame | Fluid VLT Carbon Front Triangle, Carbon SS and CS, 27.5" Wheel, 140mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™ |
---|---|
Fork | Fox 36 Performance Elite, 29", 150mm Travel, 44mm Offset |
Headset | FSA No. 57 ZS, Carbon Top Cover |
Rear Shock | Fox FLOAT X2 Performance Elite, 185x55mm Trunnion |
Rims/Wheels | Crank Brothers Synthesis Alloy Wheelset Enduro E-Bike, 27.5" Rear, 29" Front. |
Hubs | F: Crank Bros. Synthesis Alloy, 110x15mm Boost, 6-Bolt, R: Crank Bros. Synthesis Alloy, 148x12mm Boost, Star Ratchet, 6-Bolt, XD |
Tires | F: Continental Kryptotal 29" x 2.4" Trail, R: Continental Xynotal 27.5" x 2.4" Trail |
Crankset | Praxis Carbon Bosch, 165mm |
Chain | SRAM XO Eagle T-Type |
Rear Derailleur | SRAM X0 Eagle AXS T-Type |
Rear Cogs | SRAM 1295 T-Type, 10-52T |
Shifters | SRAM Pod Ultimate Controller |
Handlebars | One Up Carbon 800mm, 20mm Rise |
Tape/Grips | WTB Wavelength Grip |
Stem | Norco SL 6061 Alloy 40mm Length, 35mm Clamp |
Brakes | SRAM Code Silver Stealth, 4-Piston, Metallic Pads |
Saddle | Fizik Ridon |
Seat Post | One Up Travel Adjust Dropper, 31.6mm, 125mm (S1), 150mm (S2), 170mm (S3), 200mm (S4, S5) |
Accessories & Extras | Drive Unit: Bosch Performance Line SX, Battery: Bosch CPT 400Wh |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Silver / SZ 1 | 058817666520 | 0234014154 | 210000030166 |
Silver / SZ 2 | 058817666582 | 0234014155 | |
Silver / SZ 3 | 058817666599 | 0234014156 | |
Silver / SZ 4 | 058817666612 | 0234014157 | |
Silver / SZ 5 | 058817666629 | 0234014158 |
