Details

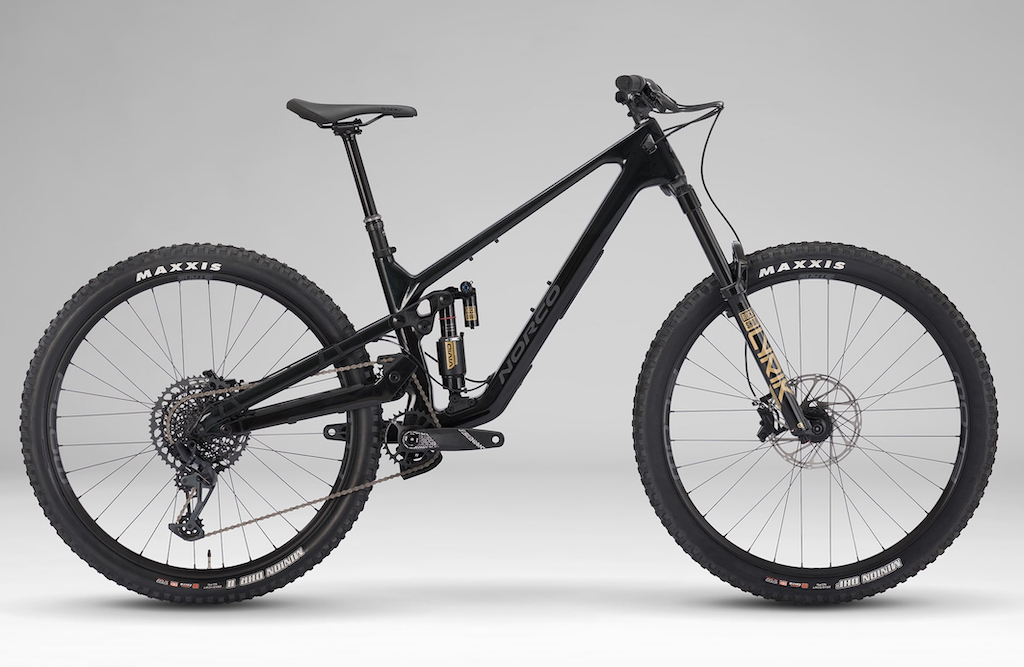

Whether you’re carving down a steep loam line, dropping in for an enduro stage, or heading into the backcountry for an all-day epic, this bike performs. With increased rearward axle path, idler, and the innovative VPSHP suspension layout, this new design gives the Sight next level confidence and capability, up or down the mountain. With 160/150mm of travel, the 2024 Sight takes the best of the Range platform and has tightened it up into a light, pedal friendly, maneuverable, high-pivot package.
VPShp Suspension Platform
Designed around Norco’s VPSHP (Virtual Pivot Suspension | High Pivot) suspension layout, it increases rearward axle path to improve suspension performance in technical terrain, while retaining the dynamic and responsive feel that riders expect from a do-it-all All-Mountain bike.
Through extensive testing using an i-track configured idler location, anti-squat has been tuned for efficiency and responsive feel under power. The idler mounted to the chainstay manages chain growth and pedal-kickback.
Swapping the linkarm and lower shock mount with our “Missing Link Kit” converts between 29” and 27.5” to let you pick the wheelsize that suits you best, while maintaining geometry and kinematics to ensure consistent fit and bike setup.
Specs
Frame | Sight Carbon, VPS HP, 150mm Travel, UDH Compatible |
---|---|
Fork | RockShox Lyrik Ultimate, Charger 3, 160mm, 44mm Offset, Fender Included |
Headset | FSA #57 E, Sealed Bearing |
Rear Shock | RockShox Vivid Ultimate Air, 205x60 Trunnion |
Rims/Wheels | Stan's Flow S2, Black 32H, 29"/29", 29"?27.5" MX |
Hubs | F: Sealed Bearing 15x110mm Boost, 6-bolt R: Race Face Trace 12x148mm Boost, XD, 6-Bolt |
Spokes | DT Competition Butted Black Stainless |
Tires | F: Maxxis Minion DHF 2.5'", 3C, MaxxTerra/EXO+/TR, Folding R: Maxxis Minion DHR II 2.4" WT, 3C, MaxxTerra/EXO+/TR, Folding |
Crankset | Truvativ Descendent 6K Eagle, 30T, 170mm |
Bottom Bracket | SRAM DUB BSA Threaded |
Chain | SRAM SX Eagle |
Rear Derailleur | SRAM GX Eagle Lunar |
Rear Cogs | SRAM PG1275 Eagle 10-52T |
Shifters | SRAM NX Eagle |
Handlebars | 6061 Alloy, 800mm, 25mm Rise |
Tape/Grips | DMR DeathGrip |
Stem | Alloy, 40mm Length, 35mm Clamp |
Brakes | SRAM Code Bronze Stealth, 4-Piston, Sintered Pads |
Saddle | SDG Bel Air V3 |
Seat Post | TranzX YS105 Dropper, 34.9mm, 150mm (1), 170mm (2), 200 (3, 4), 230mm (5) |
* Subject to change without notice.
