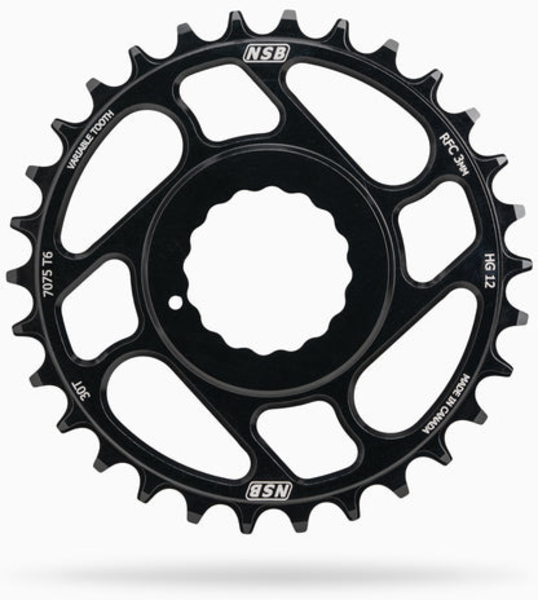

North Shore Billet Race Face Cinch HG12 1x12 Direct Mount Chainrings

$84.99
Details
Narrow wide direct mount chainrings for Race Face Cinch direct mount cranks with our redesigned tooth for the Shimano HG12 12-speed drivetrains. The chainring is designed to give the optimum chain line. This gives the smoothest shifting across the cassette.
Fits:
- RaceFace Cranksets SixC
- Next SL
- Turbine Cinch
- Atlas Cinch
Specifications:
- Chainrings are compatible with Shimano HG12 12-speed chains such as:
- XTR CN-M9100
- XT CN-M8100
- SLX CN-M7100
- Machined from solid 7075 T6 Aluminum
- Anodized Black with Laser Etched Graphics
Chainline: Boost: 52mm from the bottom bracket center
Ring Offset: 3mm
Weight:
28T – 75
30T – 90 g
32T – 105 g
34T – 115 g
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Black / 28T | 824528028793 | CR2817-B | 210000022836 |
Black / 30T | 824528028809 | CR3017-B | |
Black / 32T | 824528028823 | CR3217-B | |
Black / 34T | 824528028847 | CR3417-B |
