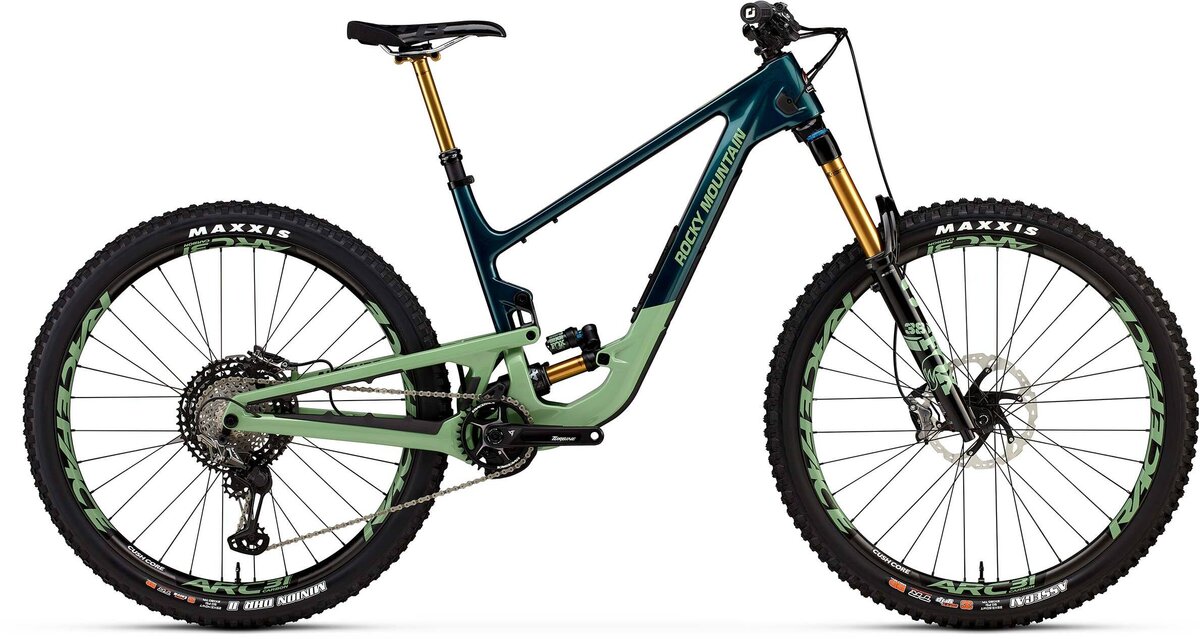

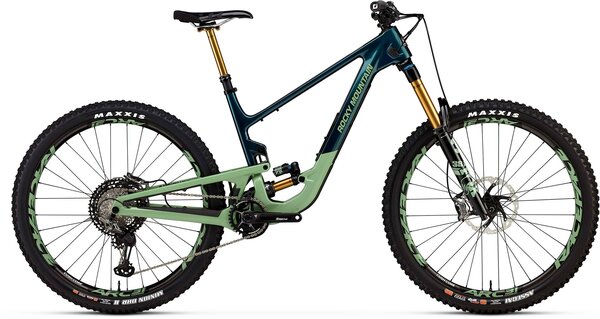

Rocky Mountain Altitude C90 Rally Ed Shimano - 2024
$12,999.99
Details
Completely reimagined, from the ground up.
The all-new design makes the Altitude even faster than before. With increased stiffness and a lower centre of gravity, overall ride performance is leveled up.
Eats up tough terrain.
Its finely tuned rate curve and concentrated suspension mass let it handle bumps effectively, keeping the rear wheel glued to the ground under power.
Ride support you can count on.
The linear rate curve provides a supportive and predictable feel with minimal unwanted movement or harshness. Mid to large-sized impacts are absorbed effectively without compromising speed or control.
Specs
| Frame | SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | BSA Bottom Bracket | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry |160mm Travel. SMOOTHWALL™ Carbon Rear Triangle |
|---|---|
| Fork | Fox 38 Float EVOL GRIP2 Factory Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset |
| Headset | FSA Orbit NO.85 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Rear Shock | Fox Float X2 Factory | Sealed Bearing Eyelet | 40x10mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm |
| Rims/Wheels | Race Face ARC Carbon 31 | 32H / Tubeless Ready - Tape / Valves Incl |
| Hubs | Front Hub:DT Swiss 350 Boost 15mm Rear Hub:DT Swiss 350 Boost 148mm | 36T Star-Ratchet |
| Spokes | DT Swiss Competition 2.0/1.8/2.0 |
| Tires | F: Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready |
| Crankset | Race Face Turbine Cinch | 32T | 30mm Spindle | SM = 165mm | MD - XL = 170mm |
| Bottom Bracket | Race Face BSA 73 30mm |
| Chain | Shimano XTR 12s |
| Rear Derailleur | Shimano XTR |
| Rear Cogs | Shimano XTR 12s 10-51T |
| Shifters | Shimano XTR |
| Handlebars | Race Face Next R | 780mm Width | 35mm Rise | 8° Backsweep | 4° Upsweep | 35mm Clamp |
| Tape/Grips | ODI Elite Pro Lock On |
| Stem | Race Face Turbine R | 0° Rise | All Sizes = 40mm |
| Brakes | Shimano XTR Trail 4 Piston | IceTec Metal Pads |
| Saddle | WTB Volt Race 142 |
| Seat Post | Fox Transfer Factory Series 30.9mm | SM = 150mm | MD = 175mm | LG - XL = 200mm |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Green/Green / Small / 27.5 Inch | 770416482195 | B0325SM1 |
| Green/Green / Medium / 29 Inch | 770416482232 | B0325MD1 |
| Green/Green / Large / 29 Inch | 770416482270 | B0325LG1 |
| Green/Green / X-Large / 29 Inch | 770416482317 | B0325XL1 |
