Rocky Mountain Instinct A10 Shimano - 2024

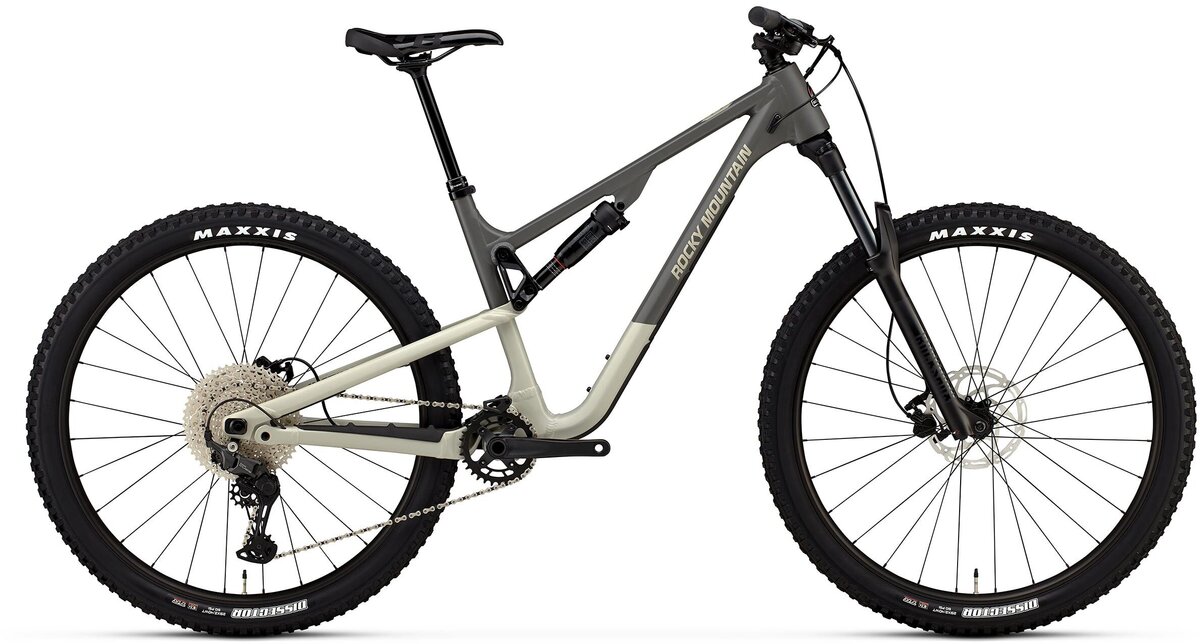

Rocky Mountain Instinct A10 Shimano
$3,199.99
Color: Grey/Beige
Size: Select size
Wheel Size: Select wheel size
Please select options Unavailable
Sorry, this item is currently not available. Please contact us to check availability.

Details

The Instinct has always been the benchmark for those in search of a do-it-all quiver-killer. Designed to thrive on technical trails, but still allows you to push the distance and crush the climbs. We’ve updated the frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Trust your Instinct.

What's New?

Refined geometry
We’ve increased the reach, made the seat tube angle steeper, lengthened the chainstays.

Total adjustability
Designed with adjustable frame features to suit all riders and riding styles. This is our most versatile platform.

Size-specific tune
Each frame size is tuned for small-bump compliance, mid-stroke support, and end-stroke progressiveness. Each framesize also features custom shock tunes based on real world field testing.

Reach adjust headset
Fine tune your ride with center, +/- 5mm offset options.

RIDE-4™ adjustment system
Allows riders to quickly fine-tune their geometry and suspension with a single Allen key.

Generous space for long dropper posts
Shorter seat tube lengths for increased dropper post fitment.

Storage included
The new PenaltyBox™ 2.0 downtube storage (carbon models only) includes generous capacity, custom tool wrap and our rock-solid hinged door system that doubles down as a water bottle mount and built-in concealed AirTag/Tile compartment.

Fully enclosed internal routing
Allows for easy cable and hose installations, with thoughtful consideration for moto-style brake setups.

Specs

Frame FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 140mm Travel. FORM™ Alloy Rear Triangle
Fork RockShox Recon Silver RL 150mm | 42mm Offset
Headset FSA ZS56|66 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Rear Shock RockShox Deluxe Select | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm
Rims/Wheels Rocky Mountain TR30 Tubeless | 28H / Tubeless Compatible - Tape / Valves / Sealant Not Incl
Hubs Front Hub:Shimano TC500 | 15x110m | 28H Rear Hub:Shimano TC500 Boost 148mm | 28H
Spokes 2.0 Stainless
Tires F: Maxxis Dissector 2.4 WT EXO Tubeless Ready // R: Maxxis Dissector 2.4 WT EXO Tubeless Ready
Crankset Rocky Mountain Microdrive | 32T | Sram 76mm BCD | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm
Bottom Bracket Rocky Mountain Sealed BB92 - Shimano Compatible
Chain KMC X11-1
Rear Derailleur Shimano CUES 11spd
Rear Cogs SunRace CSMS8 EA1 11-51T
Shifters Shimano CUES 11spd
Handlebars Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Tape/Grips Rocky Mountain Lock On Light
Stem Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm
Brakes Tektro HD-M275 | Shimano Pad Compatible
Saddle WTB Volt 142
Seat Post X Fusion Manic Composite 30.9mm | XS = 125mm | SM = 150mm | MD - LG = 170mm | XL = 200mm

* Subject to change without notice.
