Details

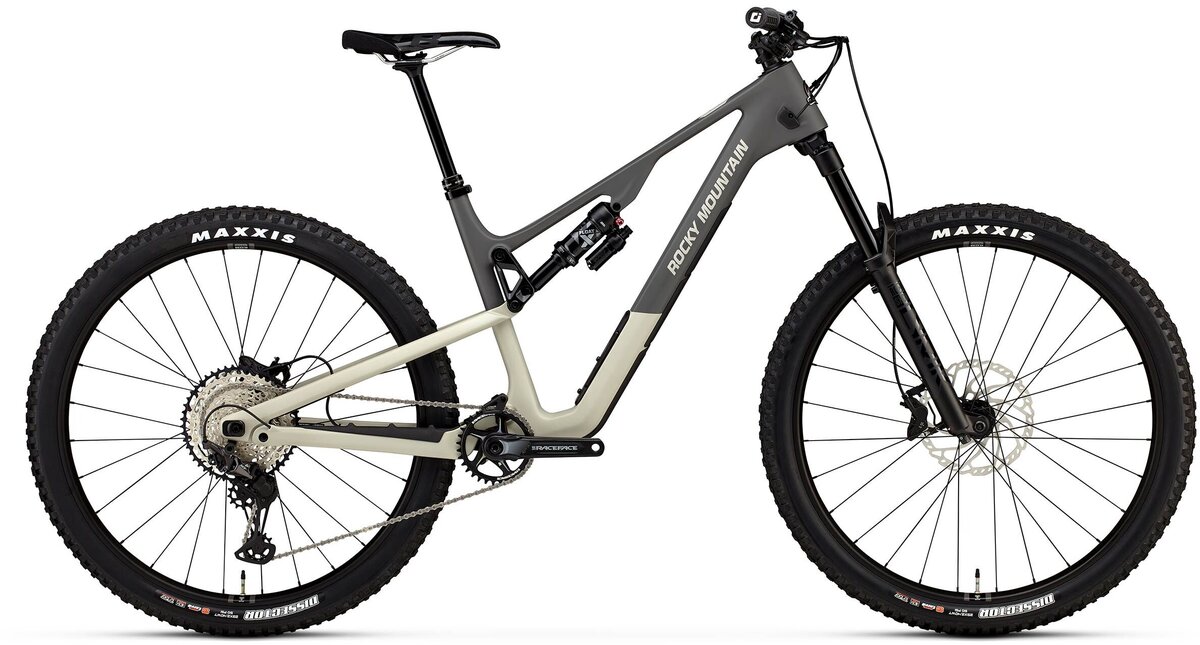

The Instinct has always been the benchmark for those in search of a do-it-all quiver-killer. Designed to thrive on technical trails, but still allows you to push the distance and crush the climbs. We’ve updated the frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Trust your Instinct.
What's New?
Refined geometry
We’ve increased the reach, made the seat tube angle steeper, lengthened the chainstays.
Total adjustability
Designed with adjustable frame features to suit all riders and riding styles. This is our most versatile platform.
Size-specific tune
Each frame size is tuned for small-bump compliance, mid-stroke support, and end-stroke progressiveness. Each framesize also features custom shock tunes based on real world field testing.
Reach adjust headset
Fine tune your ride with center, +/- 5mm offset options.
RIDE-4™ adjustment system
Allows riders to quickly fine-tune their geometry and suspension with a single Allen key.
Generous space for long dropper posts
Shorter seat tube lengths for increased dropper post fitment.
Storage included
The new PenaltyBox™ 2.0 downtube storage (carbon models only) includes generous capacity, custom tool wrap and our rock-solid hinged door system that doubles down as a water bottle mount and built-in concealed AirTag/Tile compartment.
Fully enclosed internal routing
Allows for easy cable and hose installations, with thoughtful consideration for moto-style brake setups.
Specs
Frame | SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 140mm Travel. SMOOTHWALL™ Carbon Rear Triangle |
---|---|
Fork | RockShox Lyrik Select RC 150mm | 27.5 = 37mm Offset | 29 = 42mm Offset |
Headset | FSA Orbit NO.85 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
Rear Shock | Fox Float X Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ |
Rims/Wheels | WTB ST Light i30 TCS 2.0 Tubeless | 28H / Tubeless Ready - Tape / Valves Incl |
Hubs | Front Hub:Rocky Mountain SL Sealed Boost 15mm Rear Hub:DT Swiss 370 Boost 148mm | 18T Star-Ratchet |
Spokes | 2.0 Stainless |
Tires | Tires:F: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready // R: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready |
Crankset | Race Face Aeffect Cinch | 32T | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm |
Bottom Bracket | Shimano SM-BBMT500 |
Chain | Shimano M6100 |
Rear Derailleur | Shimano XT |
Rear Cogs | Shimano SLX 10-51T |
Shifters | Shimano XT |
Handlebars | Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp |
Tape/Grips | ODI Elite Pro Lock On |
Stem | Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm |
Brakes | Shimano MT6120 4 Piston | Metal Pads |
Saddle | WTB Volt Race 142 |
Seat Post | X Fusion Manic Alloy 30.9mm | Shimano MT500 Remote | XS = 125mm | SM = 150mm | MD - LG = 170mm | XL = 200mm |
* Subject to change without notice.
