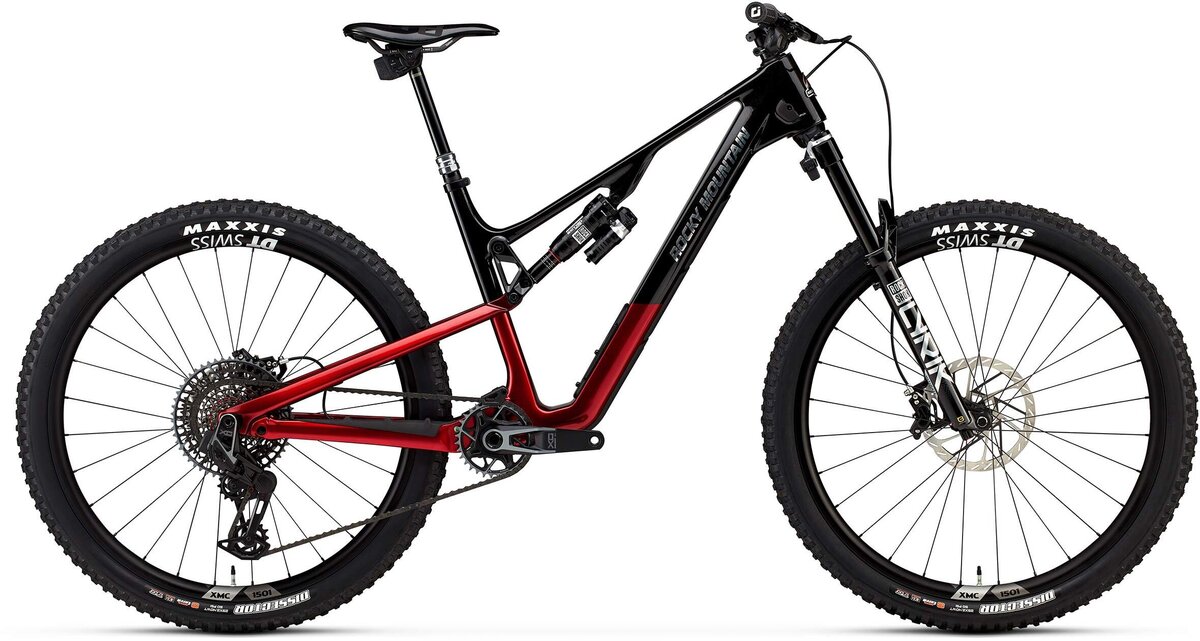

Rocky Mountain Instinct C99 Sram - 2024
Details
The Instinct has always been the benchmark for those in search of a do-it-all quiver-killer. Designed to thrive on technical trails, but still allows you to push the distance and crush the climbs. We’ve updated the frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Trust your Instinct.
What's New?
Refined geometry
We’ve increased the reach, made the seat tube angle steeper, lengthened the chainstays.
Total adjustability
Designed with adjustable frame features to suit all riders and riding styles. This is our most versatile platform.
Size-specific tune
Each frame size is tuned for small-bump compliance, mid-stroke support, and end-stroke progressiveness. Each framesize also features custom shock tunes based on real world field testing.
Reach adjust headset
Fine tune your ride with center, +/- 5mm offset options.
RIDE-4™ adjustment system
Allows riders to quickly fine-tune their geometry and suspension with a single Allen key.
Generous space for long dropper posts
Shorter seat tube lengths for increased dropper post fitment.
Storage included
The new PenaltyBox™ 2.0 downtube storage (carbon models only) includes generous capacity, custom tool wrap and our rock-solid hinged door system that doubles down as a water bottle mount and built-in concealed AirTag/Tile compartment.
Fully enclosed internal routing
Allows for easy cable and hose installations, with thoughtful consideration for moto-style brake setups.
Specs
| Frame | SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 140mm Travel. SMOOTHWALL™ Carbon Rear Triangle |
|---|---|
| Fork | RockShox Lyrik Ultimate Flight Attendant 160mm | Auto-Adjust Flight Attendant Damper | 27.5 = 37mm Offset | 29 = 42mm Offset |
| Headset | FSA Orbit NO.85 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Rear Shock | RockShox Super Deluxe Ultimate Flight Attendant | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x55mm |
| Rims/Wheels | DT Swiss XMC 1501 Carbon |
| Tires | F: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready // R: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready |
| Crankset | Sram X0 Transmission Alloy | 32T | DUB Spindle | Power Meter Sensor | Crankarm Length: XS -SM = 165mm | MD - XL = 170mm |
| Bottom Bracket | Sram BB92 DUB Wide |
| Chain | Sram XO Flattop T-Type |
| Rear Derailleur | Sram X0 T-Type Wireless |
| Rear Cogs | Sram XS-1295 T-Type 10-52T |
| Shifters | Sram AXS Pod Wireless Controller |
| Handlebars | Race Face Next R | XS = 760mm | SM - XL = 780mm Width | 20mm Rise | 8° Backsweep | 4° Upsweep | 35mm Clamp |
| Tape/Grips | ODI Elite Pro Lock On |
| Stem | Race Face Turbine R | 0° Rise | All Sizes = 40mm |
| Brakes | Sram Code RSC 4 Piston | Metal Pads |
| Saddle | WTB Silverado Carbon 142 | Carbon Rails |
| Seat Post | Rock Shox Reverb AXS Wireless Post | XS = 125mm | SM = 150mm | MD - XL = 170mm |
* Subject to change without notice.
